137-1351-7221纳米实验室砂磨机特点:
流量大、出料顺畅、有效降低磨损、稳定性更可靠、进口的机械密封、轴承、输送泵、皮带以及皮带轮等标准件。采纳欧洲砂磨机设计标准,N系列纳米研磨机。
应用:
陶瓷、打印喷墨、TFTLCD滤色分散体、锂电池材料、热敏纸、CMP、陶瓷墨水、纳米粉体、纳米色浆、食品添加剂等纳米研磨领域 。
137-1351-7221

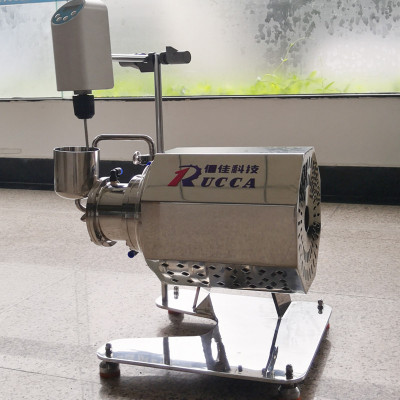

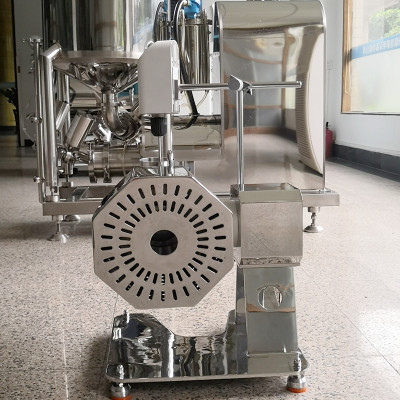

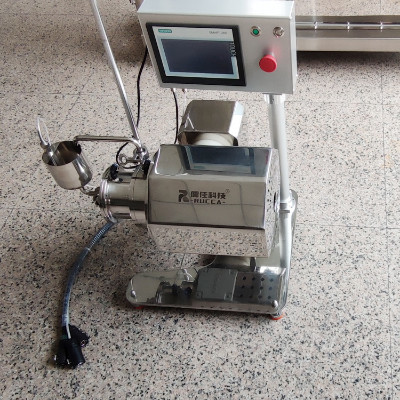

N系列纳米研磨机,采纳欧洲砂磨机设计标准,流量大,控温能力好,能量转化率高,粒度分布范围窄,特别针对微小研磨珠的使用进行了优化,从柔性分散至超高能量研磨都能高效工作。
广泛应用于功能陶瓷、打印喷墨、TFTLCD滤色分散体、锂电池材料、热敏纸、CMP、陶瓷墨水、纳米粉体、纳米色浆、食品添加剂等纳米研磨领域 。
N-type sand mill is adopted European standard,with large flux,narrow particle size distribution.The mill has been specifically optimizied for the used in functional ceramics,intjet,TFTLCD filter ink,lithium battery,thermal paper,CMP,ceramic ink,nano-powder,nano pigment,food additive.
特点 Characteristics :
1、全新设计的离心分离装置,流量大,出料顺畅;
1、Static centrifugal separation device is a new design, flow is large, smooth discharge;
2、可以使用0.1mm以上的研磨介质
2、can use the grinding media over 0.1mm;
3、以黄金分割比为标准的转子与筒体布置方式
3、To golden ratio rotor and cylinder arrangement as standard,
4、可以有效降低磨损、增大能量利用率,达成最佳的使用效果
4、Can effectively reduce the wear, increase energy efficiency, achieve the best Effect of the use of;
5、更加优化的整机设计,设备整体稳定性更可靠
5、The design will be more optimized, the overall stability of the equipment more reliable;
6、全部进口的机械密封、轴承、输送泵、皮带以及皮带轮等标准件
6、all imports of mechanical seals, bearings, pumps, the belt And the pulley and other standard parts;
7、内外双重冷却模式,可以有效降低研磨时产生的热量
7、double cooling mode, can effectively reduce the grinding heat generation.
型号参数 | 研磨筒全容积L | 研磨筒有效容积L | 电机功率Kw | 加工批量L | 冷却水用量L/h | 最大线速度m/s |
N0.5 | 1 | 0.5 | 1.5 | 1~5 | 100 | 12 |
